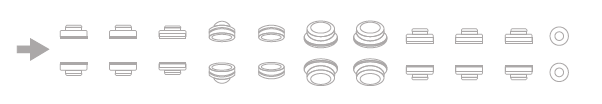

Grinding Head Distribution
Specifications
| Model | Minimum machined size (mm) | Maximum machined size (mm) | Processing thickness (mm) | Diagonal error (mm/m) | Parallelism error (mm/m) |
Machining speed(m/min) |
Total power(KW) |
Floor space size (mm) | Weight (Kg) |
| LCH2522 | 200 | 2500 | 3-50 | ±0.5 | ±0.1 | 0.5-6.5 | 50 | 4545X4650X1900 | 6600 |
| LCH3022 | 200 | 3000 | 3-50 | ±0.5 | ±0.1 | 0.5-6.5 | 50 | 5045X4650X1900 | 7000 |
| LCH4022 | 280 | 4200 | 3-50 | ±0.5 | ±0.1 | 0.5-6.5 | 50 | 6265X4650X1900 | 7800 |
| LCH6022 | 400 | 6000 | 3-50 | ±0.5 | ±0.1 | 0.5-6.5 | 50 | 8000X5300X1900 | 10800 |
